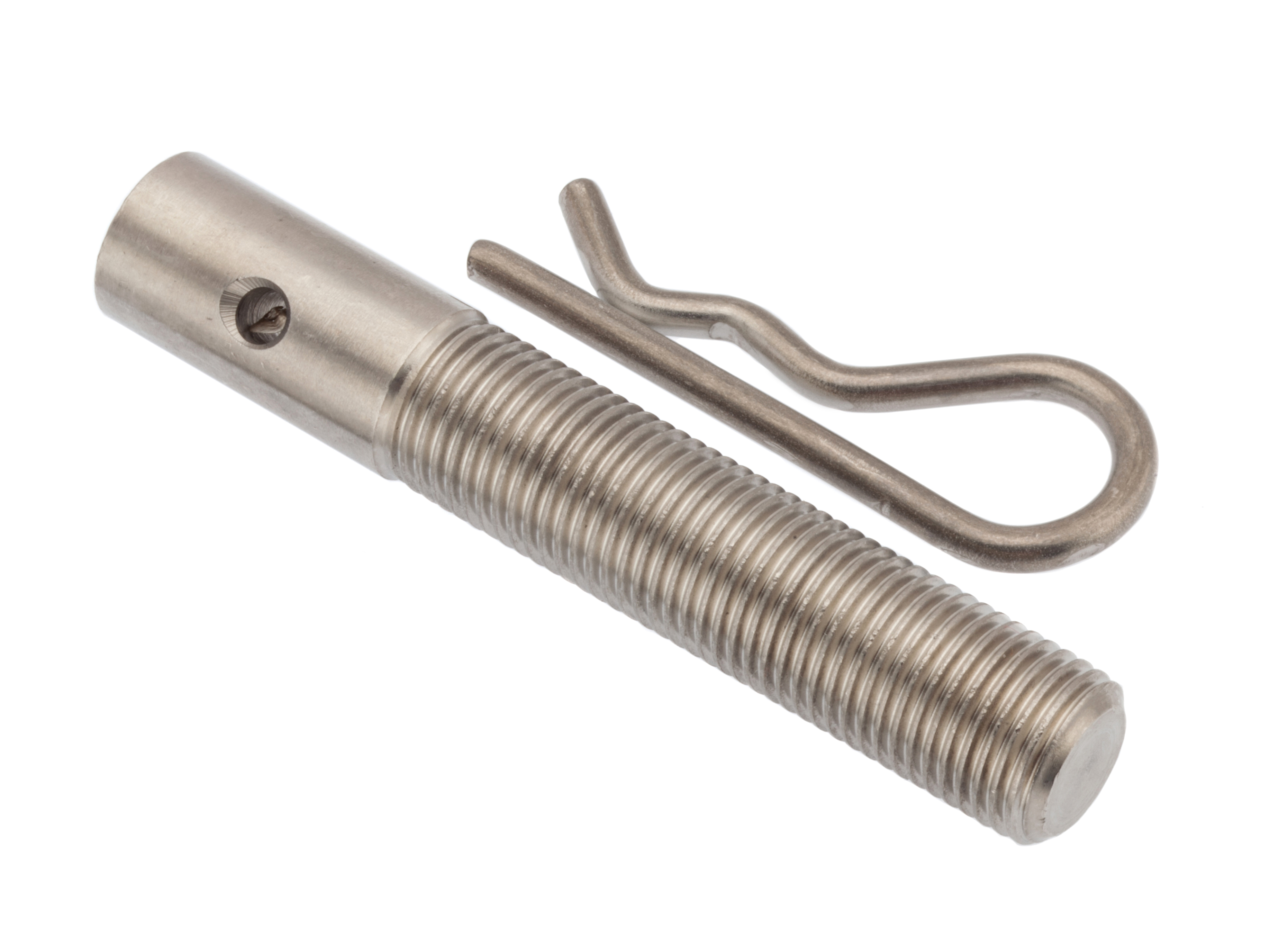

3/8-24 X 2 THREADED CLEVIS PIN, 1.4 USABLE LTH, 1" THD LTH, 18-8 SS WITH 3/8X2 HAIRPIN COTTER 18-8

Part Number: PIN70038F32

    Single End Lockable
  • Part Number PIN70038F32
  • Thread Size 3/8-24
  • Overall Length 2
  • Usable Length 1.4
  • Thread Length 1
  • Shaft Length 1
  • Shaft Diameter 3/8
  • Shaft Tolerance ±.005
  • Thread Length Tolerance ±.015
  • Drilled Hole Diameter .141 (9/64)
  • With Cotter Pin Yes
  • For Max Cotter Pin Dia (.125) 1/8
  • Material 18-8 Stainless Steel
  • Thread Spacing Fine
  • DFARS Yes
  • Country of Origin USA
